The most efficient anammox species- "Brocadia sinica" JPN1

  • BKT’s unique Anammox Solution: Candidatus “Brocadia sinica” JPN1

  •  Original enrichment at Hokkaido University by Professor Satoshi Okabe

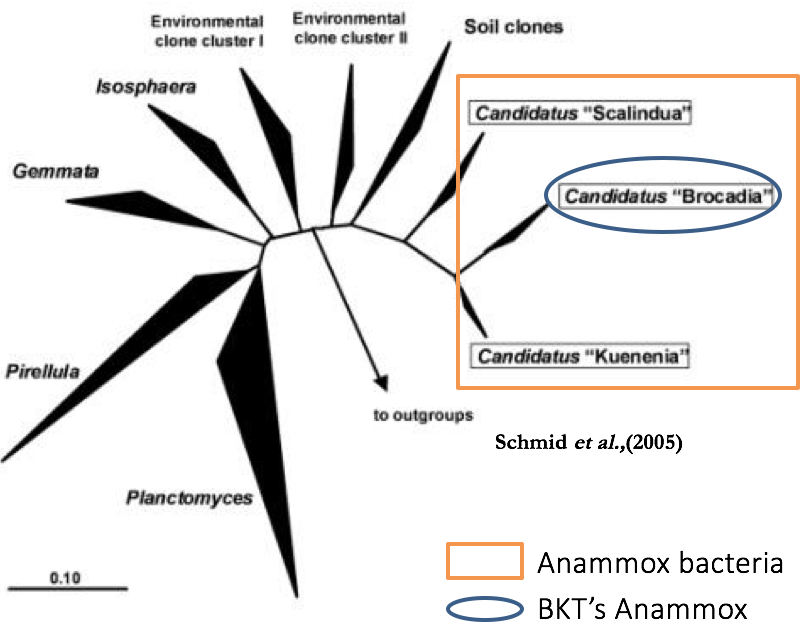

bkt amx pic 2.png
  • High growth rate & nitrogen removal rate
    Typical range of full-scale sidestream deammonification (Lackner et al., 2014): 60 - 250 mg N/g VSS/d
    Maximum achieved by highly enriched BKT Anammox species (Okabe et al.): 370 mg N/g VSS/d (33 kg N/m3/d)

  • Outperforms other species in mainstream application

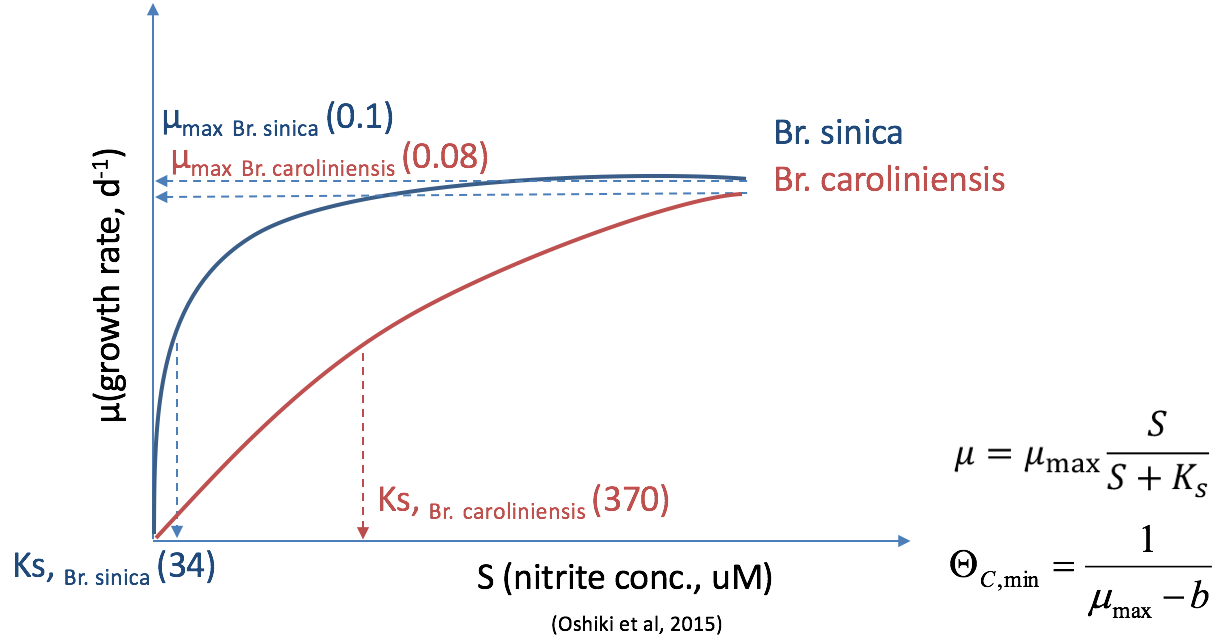

Screen Shot 2017-11-27 at 5.07.12 PM.png
 (Okabe et al.)

(Okabe et al.)

  CLICK THE CHART. The link provides Krona chart to demonstrate a progressive increase in Candidatus Brocadia over the pilot operation.

CLICK THE CHART.
The link provides Krona chart to demonstrate a progressive increase in Candidatus Brocadia over the pilot operation.



Figure. Microbial community structure of the AMX BBF at JWPCP. This is based on the amplicon sequencing targeting 16S rRNA genes.
