Test Protocol

test train alternatives

process title22.jpg


Test design for alternative 1

Objective: To validate the Title 22 compliance of  the TFF

Phase 1. Filtration without chemicals (Testing the effect of hydraulic loading)
Phase 2. Filtration with chemicals (10~30 ppm, 17% PAC)
Phase 3. Challenge test (High solid loading , 10~40mg/L TSS)



Test design for alternative 2

Objective: To validate the Title 22 compliance of the BBF

Phase 1. System stabilization
Phase 2. Performance with different hydraulic loading rates (1.2 ~ 3.8 gpm/sf)
Phase 3. Performance with high organic and solid loading (High solid loading , 10~40mg/L TSS)



Test design for alternative 3

Objective: To validate simultaneous nitrogen and turbidity removal for the Title 22 compliance

Phase 1. BBF acclimation and system modification (Seeding, reactor connection for nitrogen control)
Phase 2. Performance with different nitrogen loading (30~60 N-lb/1000 ft3/d )
Phase 3. Low nitrogen limit (5, 3 mg/L) (Electron donor, internal recycle rate, pressure)
Phase 4. Performance at peak flow (80~150 N-lb/1000 ft3/d )



Roles and responsibilities

• BKT -  Overall project support and coordination
JWPCP - Operation, sampling, and wet analysis
CDM Smith - Data collection, analysis, and reporting
SWRCB - Report review and advice, acceptance letter issue



Test Results

Test Results - Alternative 1 (TFF)

• All results for TFF operation meet the Title 22 requirements with less than 2 NTU

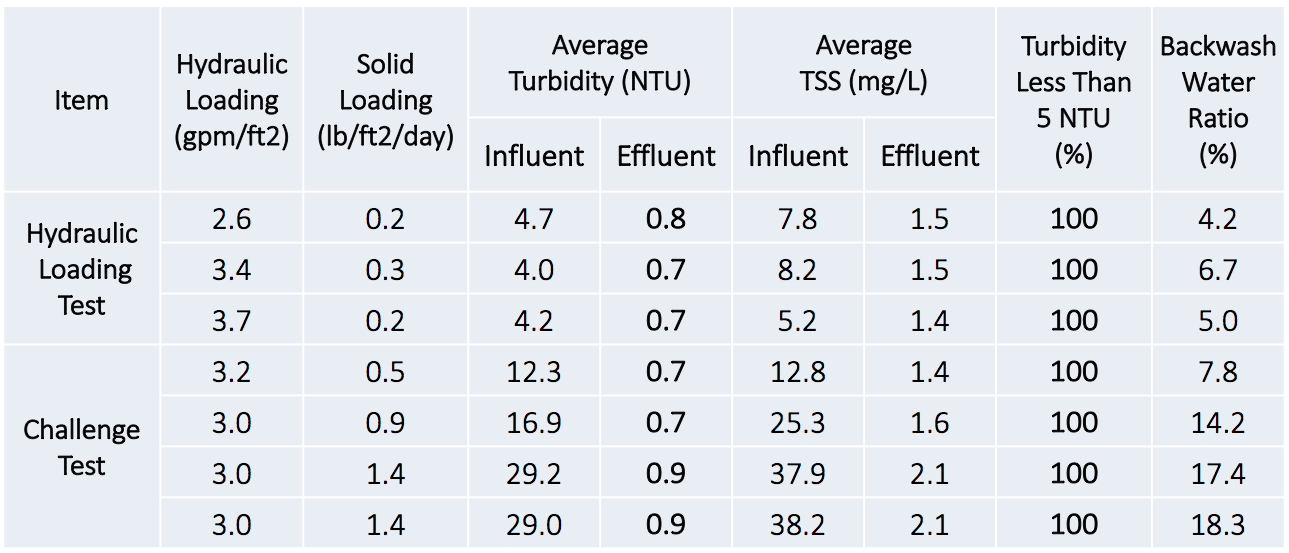

title 22 alternative 1 test result.png
title 22 alternative 1 test result graph.png

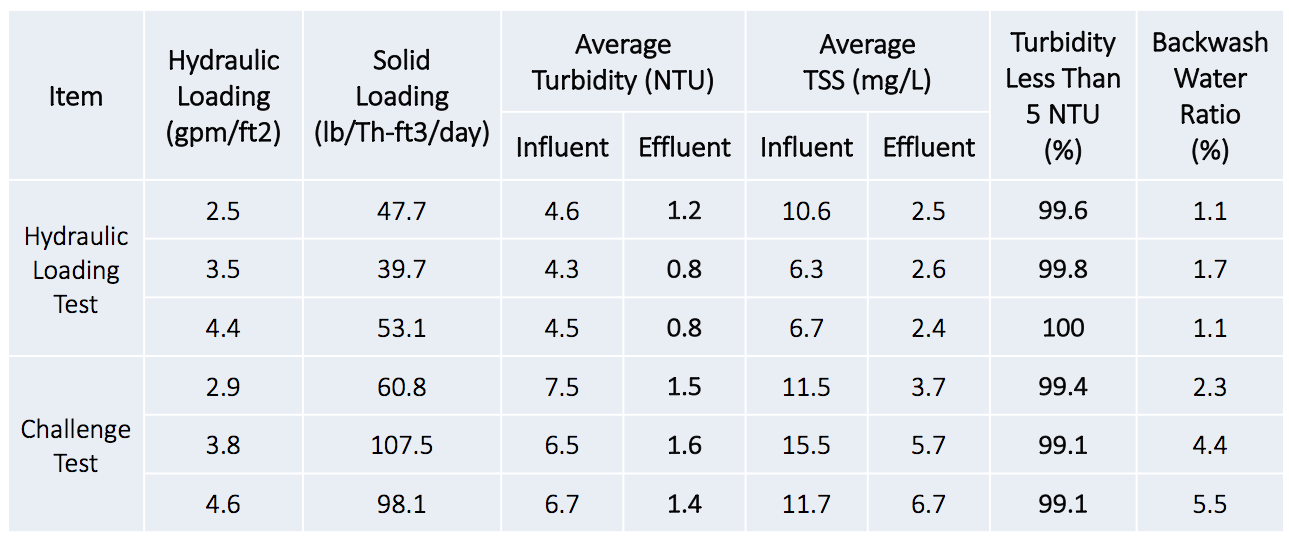

Test Results - Alternative 2 (BFF-Filtration)

• All results for BBF operation meet the Title 22 requirements with less than 2 NTU

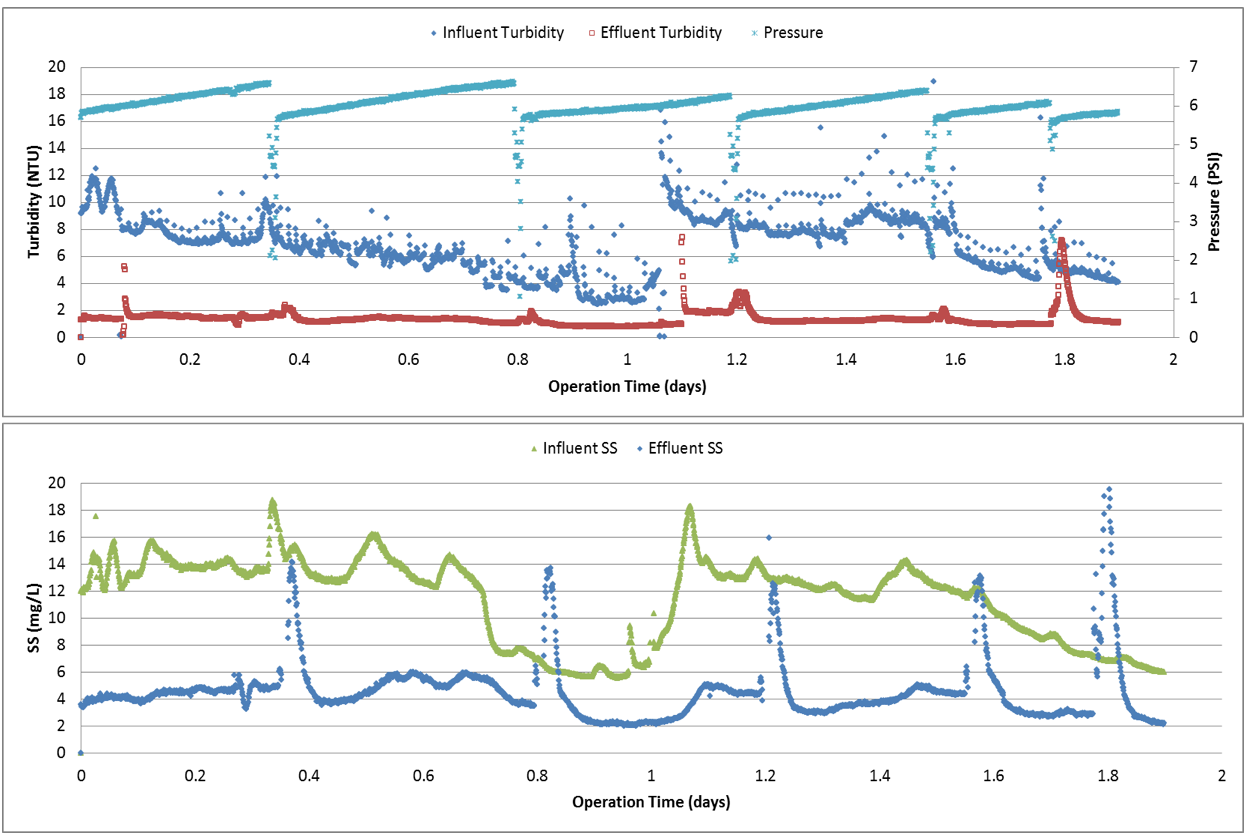

title 22 alternative 2 test result graph.png


Test Results - Alternative 3 (BFF-Nitrogen & Filtration)

Performance of Nitrification

• Effluent  NH4-N Less than 2 mg/L (> 34 min EBCT)
• Effluent NH4-N is sensitive to influent NH4-N loading (< 27 min EBCT)

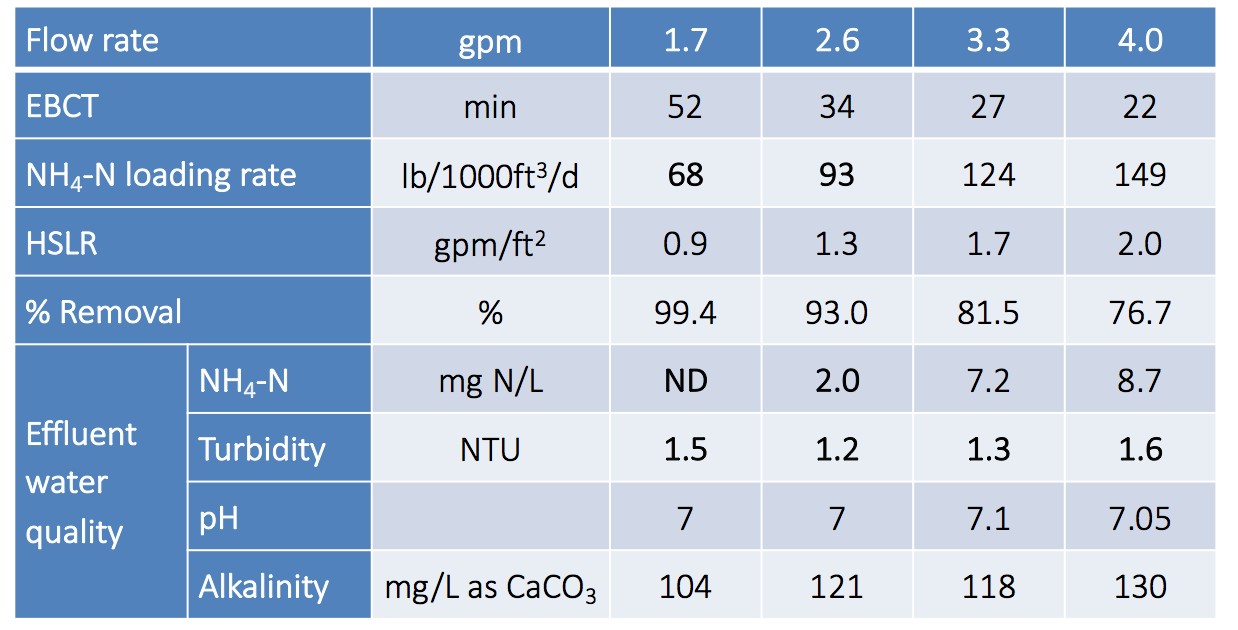

title 22 alternative 3 nitrification chart.png

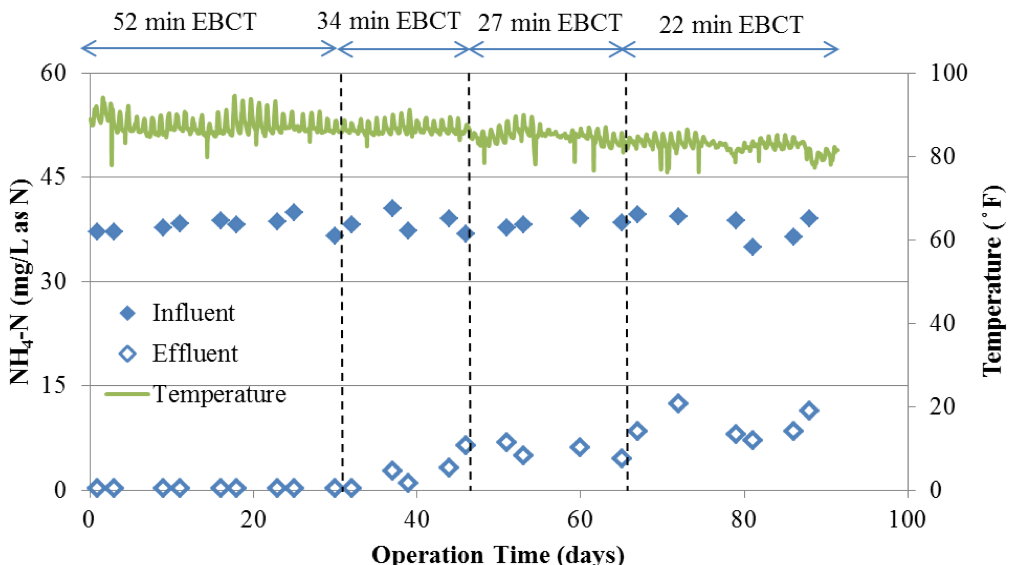

title 22 alternative 3 nitrification graph.png

Performance of Denitrification

•Stable effluent NO3-N at normal & challenge conditions

Screen Shot 2017-11-20 at 11.40.44 AM.png
Screen Shot 2017-11-20 at 11.40.28 AM.png

Title 22 Acceptance Letter

for BBF & TFF from State Water Resources Control Board (SWRCB)

BBF Title 22 Acceptance Letter.png


Title 22 Application Process Summary
